Blue Elephant ELECNC-1313Q Sheet Metal Fiber Laser Cutting Machine
出品概要
主な詳細
この出品について
説明

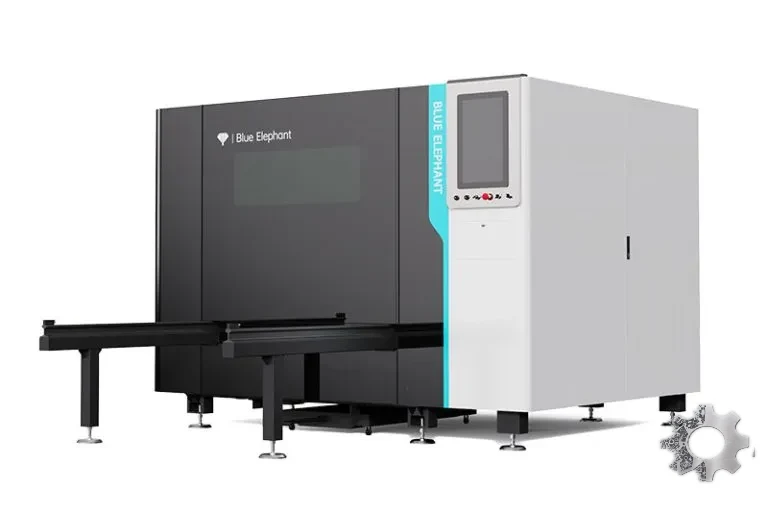

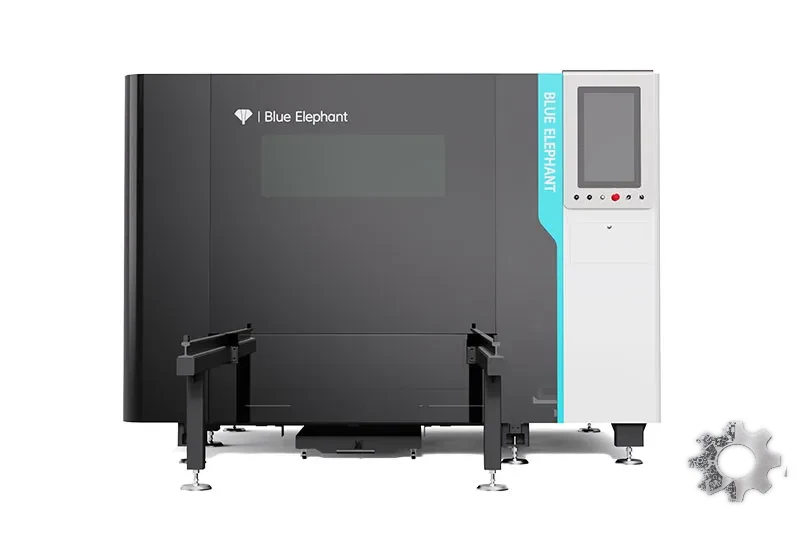

Blue Elephant ELECNC-1313Q enclosed fiber laser cutting machine for sheet metal.
Condition: New
Year: 2026
Price: USD 30,000
Location: Jinan, China
TECHNICAL SPECIFICATIONS
Working area: 1305 × 1305 mm
Table load capacity: 330 kg
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.02 mm
Maximum acceleration: 1.2 G
Available laser power range: 1–3 kW
Laser source options: Raycus / MAX
Maximum coordinated movement speed: 140 m/min
Electrical supply: 380 V, 50 Hz, three-phase
FEATURES
Compact enclosed cutting area with an observation window and a movable loading table. Carbon-steel frame, cast-aluminium beam and marble tabletop. Suitable materials include carbon steel, stainless steel, aluminium and copper alloys.
Specifications describe the manufacturer’s model range. The exact laser power and source included in the USD 30,000 offer must be confirmed before purchase. Contact us through Machex for configuration and delivery details.
